AEG DTB3652M 5000 ExtractionTech Wall Mounted Cooker Hood 60cm Stainless Steel & Glass

The AEG DTB3652M 5000 ExtractionTech Wall Mounted Cooker Hood combines powerful extraction performance with stylish stainless steel and glass design. Featuring ExtractionTech technology, mechanical push button controls, LED lighting and a powerful 600m³/h extraction rate, this 60cm wall mounted cooker hood efficiently removes cooking vapours and odours whilst complementing modern kitchen designs.

ExtractionTech technology
The powerful motor effectively removes steam, grease and cooking odours, helping maintain a cleaner and more comfortable kitchen environment.

Mechanical controls
Easy-to-use push button controls allow quick adjustment of extraction speeds and lighting functions.

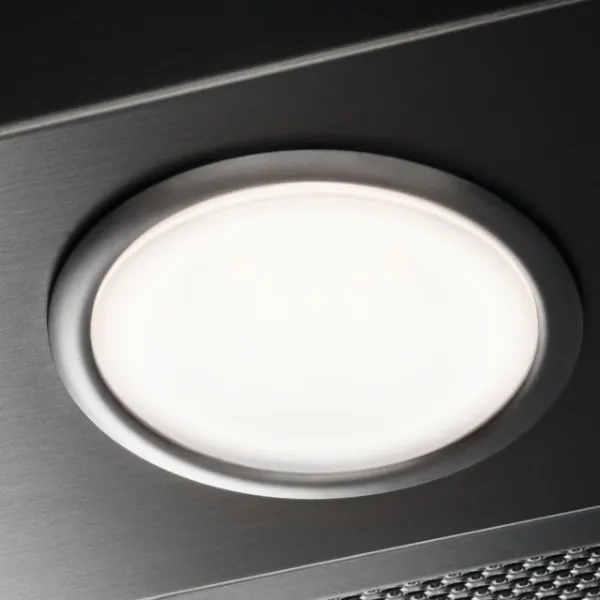

LED lighting
Two integrated LED spotlights provide excellent visibility across the cooking area whilst remaining energy efficient.

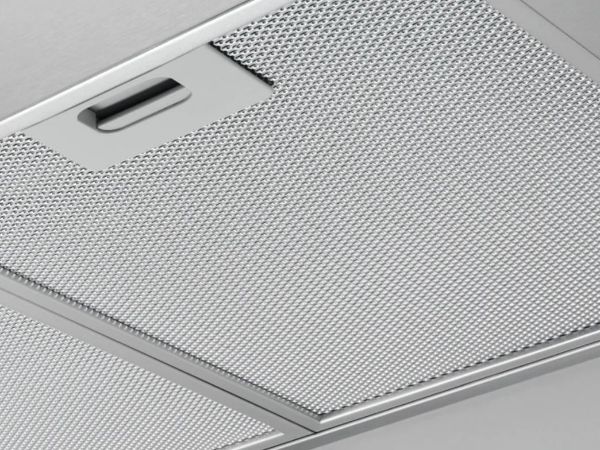

Washable grease filters
The aluminium mesh grease filters can be removed and cleaned to help maintain optimum extraction performance.

• 60cm wall mounted cooker hood
• 600m³/h maximum extraction rate
• ExtractionTech technology
• Mechanical push button controls
• LED spotlight lighting
• Ducted or recirculation installation
• 2 washable aluminium grease filters
• 3 speed settings
• Stainless steel and glass finish
• C energy rating

Warranty
The AEG DTB3652M includes a 2 year manufacturer warranty.

Product Dimensions
Width: 60 cm
Depth: 50 cm
Height: 102 cm
Net Weight: 16.2 kg
Gross Weight: 19.5 kg

Key Features

• 60cm wall mounted cooker hood
• ExtractionTech technology
• Mechanical push button controls
• LED spotlight lighting
• 600m³/h maximum extraction rate
• Ducted or recirculation installation
• 2 washable aluminium grease filters
• 3 speed settings
• Stainless steel and glass finish
• C energy rating

Product Dimensions

• Width: 600 mm
• Depth: 500 mm
• Height: 1020 mm
• Net Weight: 16.2 kg
• Gross Weight: 19.5 kg

Design Elements

• Colour: Stainless Steel & Glass
• Colour Group: Stainless Steel
• Control Type: Mechanical Push Buttons
• Finish: Stainless Steel / Glass
• Installation Type: Chimney Hood

Hood Features

• ExtractionTech Technology: Yes
• Washable Grease Filters: Yes
• Number Of Grease Filters: 2
• Grease Filter Type: Aluminium Mesh
• Charcoal Filter Included: Yes
• Ducted Installation: Yes
• Recirculation Installation: Yes

Performance

• Number Of Speed Settings: 3
• Ducted Extraction Rate Min: 295m³/h
• Ducted Extraction Rate Max: 600m³/h
• Ducted Noise Level Min: 52 dB
• Ducted Noise Level Max: 69 dB
• Min Recirculated Extraction Rate: 230m³/h
• Max Recirculated Extraction Rate: 415m³/h
• Min Recirculated Noise Level: 62 dB
• Max Recirculated Noise Level: 73 dB

Lighting

• Lighting Type: LED Spotlight
• Number Of Lights: 2
• Light Temperature: 3000K

Connectivity

• Hob2Hood Compatible: No

Dimensions & Weight

• Width: 600 mm
• Depth: 500 mm
• Height: 1020 mm
• Net Weight: 16.2 kg
• Gross Weight: 19.5 kg

Installation Guide

• Installation Type: Wall Mounted
• Ducted Installation: Yes
• Recirculation Installation: Yes
• Air Outlet Diameter: 150 mm
• Minimum Distance Above Electric Hob: 500 mm
• Minimum Distance Above Gas Hob: 650 mm
• Cord Length: 1.32 m

General

• Product Type: Wall Mounted Cooker Hood
• Series: 5000 ExtractionTech
• Product Number Code: 942 022 081
• Main Colour: Stainless Steel

Additional Information

• Warranty/Guarantee: 2 Year Manufacturer Warranty
• EAN: 7332543671304
• Product Code: DTB3652M

Energy

• Energy Efficiency Rating: C
• Annual Energy Consumption: 100.2 kWh
• Fluid Dynamic Efficiency Rating: D
• Lighting Efficiency Rating: A
• Grease Filter Efficiency Rating: D
