AEG DBX3650M 5000 ExtractionTech Wall Mounted Cooker Hood 60cm Stainless Steel

The AEG DBX3650M 5000 ExtractionTech Wall Mounted Cooker Hood combines powerful extraction performance with a premium stainless steel finish. Featuring ExtractionTech Plus technology, mechanical push button controls, LED lighting and a powerful 600m³/h extraction rate, this 60cm wall mounted cooker hood efficiently removes cooking vapours and odours to keep your kitchen fresh and comfortable.

ExtractionTech Plus technology
The powerful motor quickly clears cooking fumes and unwanted odours, helping maintain a cleaner and more enjoyable cooking environment.

Mechanical controls
Simple push button controls allow easy adjustment of extraction speeds and lighting functions.

LED lighting
Integrated LED spotlights provide bright and efficient illumination across the cooking area whilst reducing energy consumption.

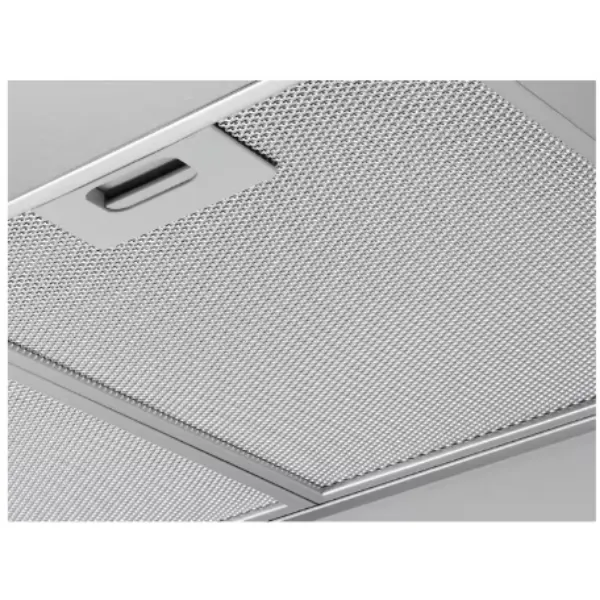

Washable grease filters
The aluminium mesh grease filters can be removed and cleaned, helping maintain optimum extraction performance.

• 60cm wall mounted cooker hood
• 600m³/h maximum extraction rate
• ExtractionTech Plus technology
• Mechanical push button controls
• LED lighting
• Ducted or recirculation installation
• 3 speed settings
• Washable aluminium grease filters
• Stainless steel finish
• C energy rating

Warranty
The AEG DBX3650M includes a 2 year manufacturer warranty.

Product Dimensions
Width: 59.8 cm
Depth: 45 cm
Height: 118 cm
Net Weight: 11.5 kg
Gross Weight: 14 kg

Key Features

• 60cm wall mounted cooker hood
• ExtractionTech Plus technology
• Mechanical push button controls
• LED spotlight lighting
• 600m³/h maximum extraction rate
• Ducted or recirculation installation
• Washable aluminium grease filters
• 3 speed settings
• Stainless steel finish
• C energy rating

Product Dimensions

• Width: 598 mm
• Depth: 450 mm
• Height: 1180 mm
• Net Weight: 11.5 kg
• Gross Weight: 14 kg

Design Elements

• Colour: Stainless Steel
• Colour Group: Stainless Steel
• Control Type: Mechanical Push Buttons
• Finish: Stainless Steel
• Installation Type: Chimney Hood / Wall Mounted

Hood Features

• ExtractionTech Plus: Yes
• Washable Filters: Yes
• Number Of Grease Filters: 2
• Grease Filter Type: Aluminium Mesh
• Ducted Installation: Yes
• Recirculation Installation: Yes
• Charcoal Filter Compatible: Yes

Performance

• Number Of Speeds: 3
• Ducted Extraction Rate Min: 295m³/h
• Ducted Extraction Rate Max: 600m³/h
• Ducted Noise Level Min: 51 dB
• Ducted Noise Level Max: 68 dB
• Recirculated Extraction Rate Min: 250m³/h
• Recirculated Extraction Rate Max: 415m³/h
• Recirculated Noise Level Min: 62 dB
• Recirculated Noise Level Max: 73 dB

Lighting

• Lighting Type: LED Spotlight
• Number Of Lights: 2
• Light Temperature: 3000K

Connectivity

• Hob2Hood Compatible: No

Dimensions & Weight

• Width: 598 mm
• Depth: 450 mm
• Height: 1180 mm
• Net Weight: 11.5 kg
• Gross Weight: 14 kg

Installation Guide

• Installation Type: Wall Mounted
• Ducted Installation: Yes
• Recirculation Installation: Yes
• Air Outlet Diameter: 150 mm
• Minimum Distance Above Electric Hob: 500 mm
• Minimum Distance Above Gas Hob: 650 mm
• Cord Length: 1.3 m

General

• Product Type: Wall Mounted Cooker Hood
• Series: 5000 ExtractionTech
• Product Number Code: 942 022 771
• Main Colour: Stainless Steel

Additional Information

• Warranty/Guarantee: 2 Year Manufacturer Warranty
• EAN: 7333394053011
• Product Code: DBX3650M

Energy

• Energy Efficiency Rating: C
• Annual Energy Consumption: 97.4 kWh
• Fluid Dynamic Efficiency Rating: D
• Lighting Efficiency Rating: A
• Grease Filter Efficiency Rating: C
