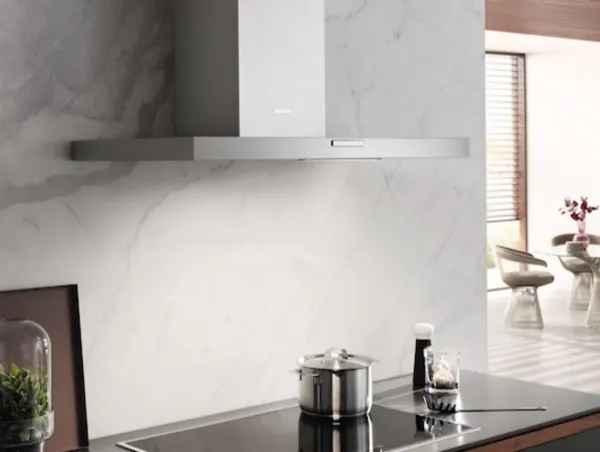

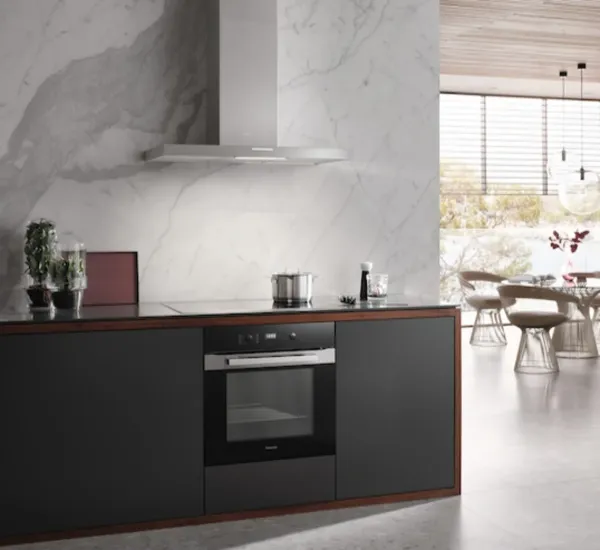

Miele DAW1920_EDST 90cm Wall Mounted Hood in Stainless Steel

The Miele DAW1920_EDST 90cm wall-mounted cooker hood combines powerful extraction with a timeless stainless steel design, making it an ideal choice for modern kitchens.

Designed with a wide 898mm canopy, this cooker hood provides excellent coverage over larger hobs and range cookers. Its clean stainless steel finish delivers a professional, durable look that fits seamlessly into both contemporary and classic kitchen styles.

Powerful extraction performance ensures your kitchen stays fresh and free from cooking odours. With airflow reaching up to 645 m³/h on the booster setting, it effectively removes steam, grease, and smells, making it suitable for busy cooking environments.

Flexible installation options allow the hood to be used in either extraction or recirculation mode, giving you versatility depending on your kitchen layout. An optional charcoal filter can be added for recirculation use.

Clear and efficient LED lighting is provided by an integrated LED strip, offering even illumination across your cooking area while maintaining energy efficiency.

Durable and effective filtration is achieved with Miele’s 10-ply stainless steel grease filters. These are dishwasher-safe, ensuring easy maintenance while maintaining high levels of grease capture.

Simple, reliable controls are delivered via EasySwitch push buttons, allowing you to adjust extraction levels quickly and easily while cooking.

Built with Miele’s renowned quality and tested for long-term use, the DAW1920_EDST offers dependable performance, efficient operation, and a sleek finish—making it a practical and stylish addition to any kitchen.

General

• Product type: Wall-mounted cooker hood
• Colour: Stainless steel
• Width: 898 mm
• EAN: 4002516657057

Design & Controls

• Control type: EasySwitch push buttons
• Finish: Stainless steel canopy
• Telescopic chimney
• Electronic controls

Performance & Extraction

• Number of speeds: 2 + booster
• Maximum extraction rate (normal): 400 m³/h
• Maximum extraction rate (booster): 645 m³/h
• Airflow range: 255–645 m³/h
• Suitable for extraction or recirculation

Noise Levels

• Noise level (min): 53 dB
• Noise level (max): 71 dB

Energy Efficiency

• Energy efficiency class: A
• Annual energy consumption: 49.8 kWh/year
• Fluid dynamic efficiency class: A
• Lighting efficiency class: A
• Grease filtering efficiency class: B

Lighting

• Lighting type: LED strip
• Number of lights: 1
• Power: 1 x 3.2 W
• Light intensity: 350 lx
• Colour temperature: 3500 K

Filters

• Number of grease filters: 3
• Filter type: 10-ply aluminium grease filters
• Dishwasher-safe filters

Technical Information

• Dual-action blower
• Total connected load: 0.24 kW
• Voltage: 230 V
• Fuse rating: 10 A
• Frequency: 50 Hz
• Number of phases: 1

Dimensions & Installation

• Height (extraction mode): 673–993 mm
• Height (recirculation mode): 803–1123 mm
• Depth: 500 mm
• Minimum distance above electric hob: 450 mm
• Duct diameter: 150 mm
• Exhaust connection: Top
• Length of supply lead: 1.4 m
• Net weight: 15 kg

Included Accessories

• Non-return flap

Optional Accessories

• Active charcoal filter (DKFS 36-P)
