AEG DGX3523S 3000 ExtractionTech Integrated Canopy Cooker Hood 52cm Grey

The AEG DGX3523S 3000 ExtractionTech Integrated Canopy Cooker Hood offers reliable everyday extraction in a compact design that fits neatly within kitchen cabinetry. Featuring ExtractionTech technology, mechanical slider controls, LED lighting and a maximum 330m³/h extraction rate, this 52cm integrated canopy cooker hood helps keep kitchen air fresh and clean whilst remaining discreetly hidden from view.

ExtractionTech technology
The reliable motor efficiently removes cooking odours, grease and steam, helping maintain a more pleasant kitchen environment.

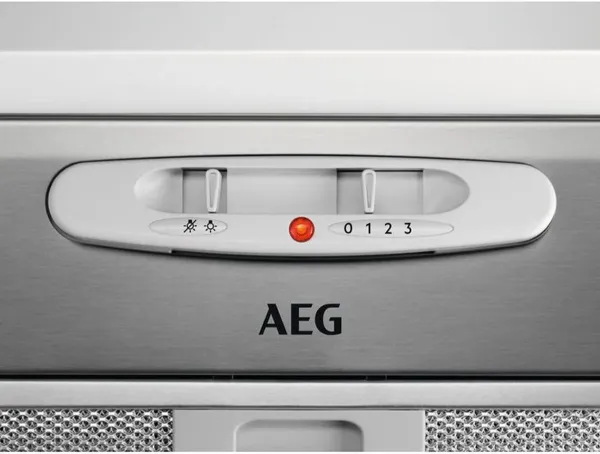

Mechanical slider controls
Simple slider controls allow quick adjustment between extraction speeds and lighting functions for straightforward operation.

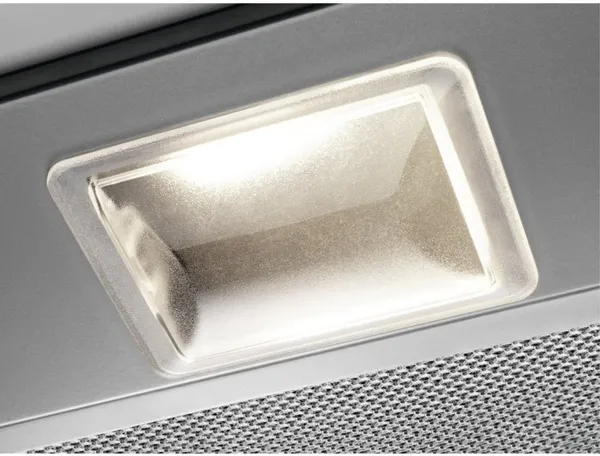

LED lighting
Energy-efficient LED lights provide clear illumination across the cooking area whilst consuming less energy than conventional lighting.

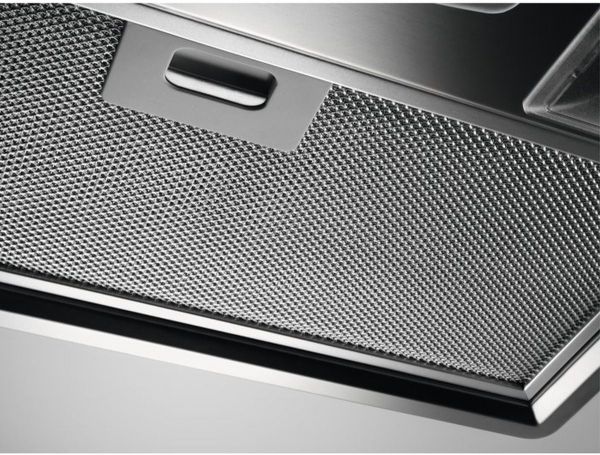

Washable grease filter
The aluminium grease filter helps capture airborne grease particles and can be removed for easy cleaning.

• 52cm integrated canopy cooker hood
• 330m³/h maximum extraction rate
• Mechanical slider controls
• LED lighting
• 3 speed settings
• Ducted or recirculation installation
• Washable aluminium grease filter
• Grey finish
• 150mm air outlet
• C energy rating

Warranty
The AEG DGX3523S includes a 2 year manufacturer warranty.

Product Dimensions
Width: 52 cm
Depth: 28.4 cm
Height: 13.8 cm
Net Weight: 4 kg
Gross Weight: 4.7 kg

Key Features

• 52cm integrated canopy cooker hood
• ExtractionTech technology
• Mechanical slider controls
• LED lighting
• 330m³/h maximum extraction rate
• Ducted or recirculation installation
• Washable aluminium grease filter
• 3 speed settings
• Grey finish
• C energy rating

Product Dimensions

• Width: 520 mm
• Depth: 284 mm
• Height: 138 mm
• Net Weight: 4 kg
• Gross Weight: 4.7 kg

Design Elements

• Colour: Grey
• Colour Group: Grey
• Control Type: Mechanical Slider
• Finish: Grey
• Installation Type: Integrated Canopy Hood

Hood Features

• Washable Grease Filter: Yes
• Number Of Grease Filters: 1
• Grease Filter Type: Aluminium Mesh
• Ducted Installation: Yes
• Recirculation Installation: Yes
• Charcoal Filter Compatible: Yes
• Charcoal Filter Type: ECFB03ST

Performance

• Number Of Speed Settings: 3
• Ducted Extraction Rate Min: 145m³/h
• Ducted Extraction Rate Max: 330m³/h
• Ducted Noise Level Min: 45 dB
• Ducted Noise Level Max: 63 dB
• Recirculated Extraction Rate Min: 140m³/h
• Recirculated Extraction Rate Max: 220m³/h
• Recirculated Noise Level Min: 56 dB
• Recirculated Noise Level Max: 70 dB

Lighting

• Lighting Type: LED Bulb
• Number Of Lights: 2
• Light Temperature: 3000K

Connectivity

• Hob2Hood Compatible: No

Dimensions & Weight

• Width: 520 mm
• Depth: 284 mm
• Height: 138 mm
• Net Weight: 4 kg
• Gross Weight: 4.7 kg

Installation Guide

• Installation Type: Integrated Canopy
• Ducted Installation: Yes
• Recirculation Installation: Yes
• Air Outlet Diameter: 150 mm
• Minimum Distance Above Electric Hob: 420 mm
• Minimum Distance Above Gas Hob: 650 mm
• Cord Length: 1.8 m

General

• Product Type: Integrated Canopy Cooker Hood
• Series: 3000 ExtractionTech
• Product Number Code: 942 022 780
• Main Colour: Grey

Additional Information

• Warranty/Guarantee: 2 Year Manufacturer Warranty
• EAN: 7333394053097
• Product Code: DGX3523S

Energy

• Energy Efficiency Rating: C
• Annual Energy Consumption: 51.9 kWh
• Fluid Dynamic Efficiency Rating: D
• Lighting Efficiency Rating: E
• Grease Filter Efficiency Rating: D
